Rata 203 & 813 HD Maxitills

Rata 203 & 813 HD Maxitills

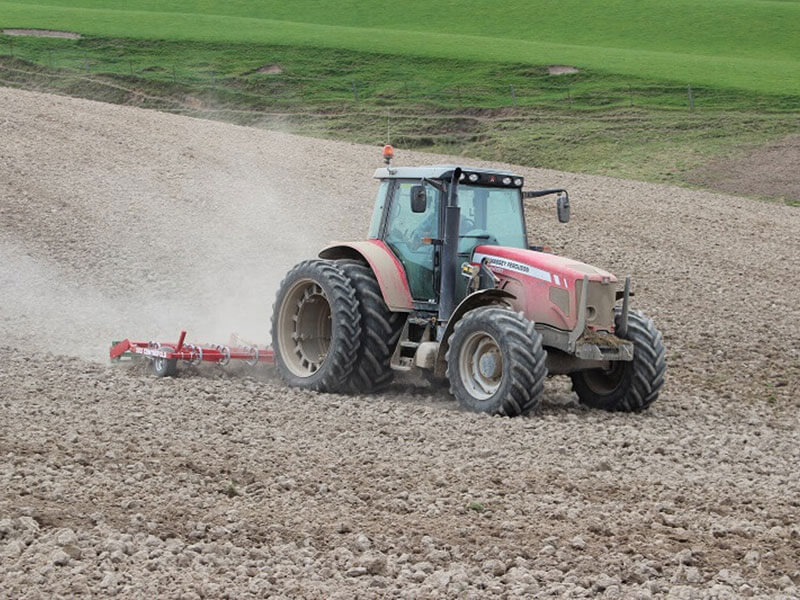

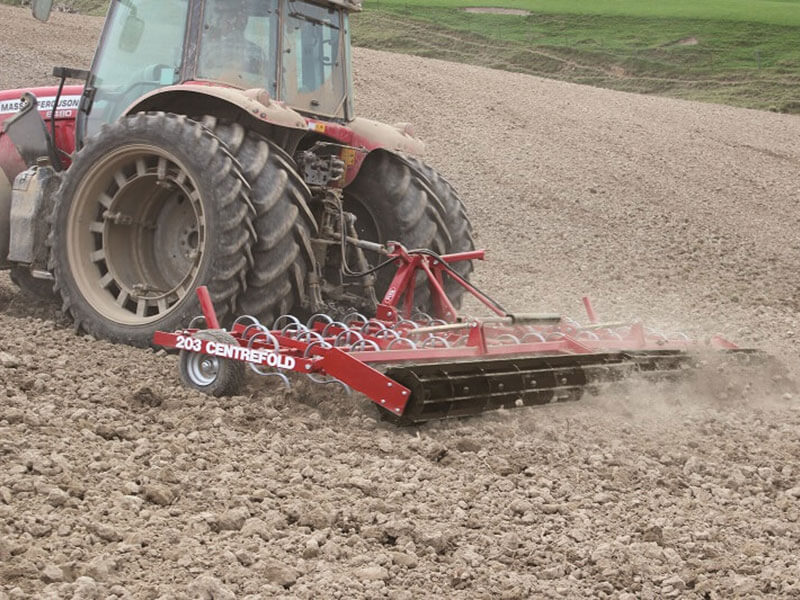

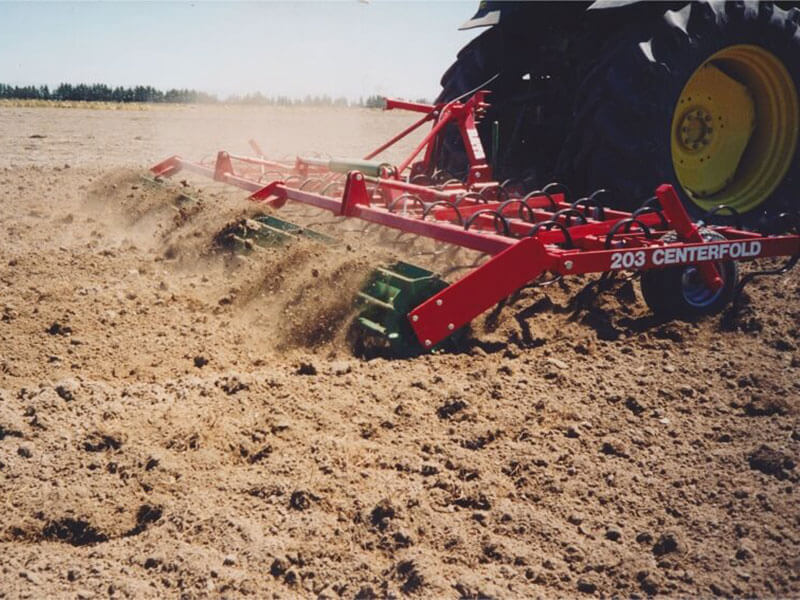

The 203 Centre Fold provides a choice of four models between sizes 4.26m to 6.1m. The independent contour following wings ensure undulation ground is covered. The vigorous vibrating action of the world famous ‘S’ tine makes a highly effective means of breaking up furrows and clods. The levelling action of the rear crumbler adds to the effectiveness of the implement giving the speediest operation in preparation of a perfect seedbed.

The big brother to the 203 center fold, the 813 mounted centerfold is designed for greater trash clearance. The 50x10mm tines with Ni- Hard points are spaced at 125mm apart giving excellent trash flow. The heavier 65x 65x6mm box section frame gives greater strength throughtout the indenpendent contour following wings which ensures all undulating ground is covered, center ridging is eliminated with construction being made up of three sections. with the levelling action of the rear crumblers adding to the effectiveness of the machine, you get a better job faster, saving on fuel and maintenance

FEATURES AND BENEFITS

Rata 203

  • Heavy duty angled flat bar cumblers
  • Turnbuckle depth control
  • Horizontal push ram for efficient wing flotation
  • Quality 10 x 32mm "S" tines
  • Main frame in 3 sections which eliminates centre ridgin and fram e stress.

Rata 813 HD Maxitills

  • Heavy duty angled flat bar cumblers
  • High quality sealed bearings
  • Space frame for trash clearance
  • High quality 50 x 10 kongskilde tines with Ni-Hard points
  • Flotation ram toggle and bolted headstock with safety latch for transport.

PRODUCT OPTIONS AND SPECS

Rata 203
203 14' CENTREFOLD MAXITILL203 16' CENTREFOLD MAXITILL203 18' CENTREFOLD MAXITILL
Working Width (M)/(Feet)4.2/144.87/165.5/18
Number of Tines424852
Tine Spacing (mm)100100100
Weight (Kg)760830900
Rata 813 HD Maxitills
813 16' MAXITILL - HD813 18' MAXITILL - HD813 20' MAXITILL - HD
Working Width (M)/(Feet)6.1/204.87/165.5/18
Number of Tines523843
Tine Spacing (mm)125125125
Weight (Kg)1,1701,0301,100
