Krone 2 & 4 Rotor Swadro Rakes
Product Range Krone 2 & 4 Rotor Swadro Rakes


Krone 2 & 4 Rotor Swadro Rakes
The flexible twin-rotor TC centre delivery rakes stand out for producing exceptionally consistent windrows while working at extremely high rates, flexible work widths and maximum ha/h performance. The range lines up four models and work widths – 5.70 m to 9.30 m.

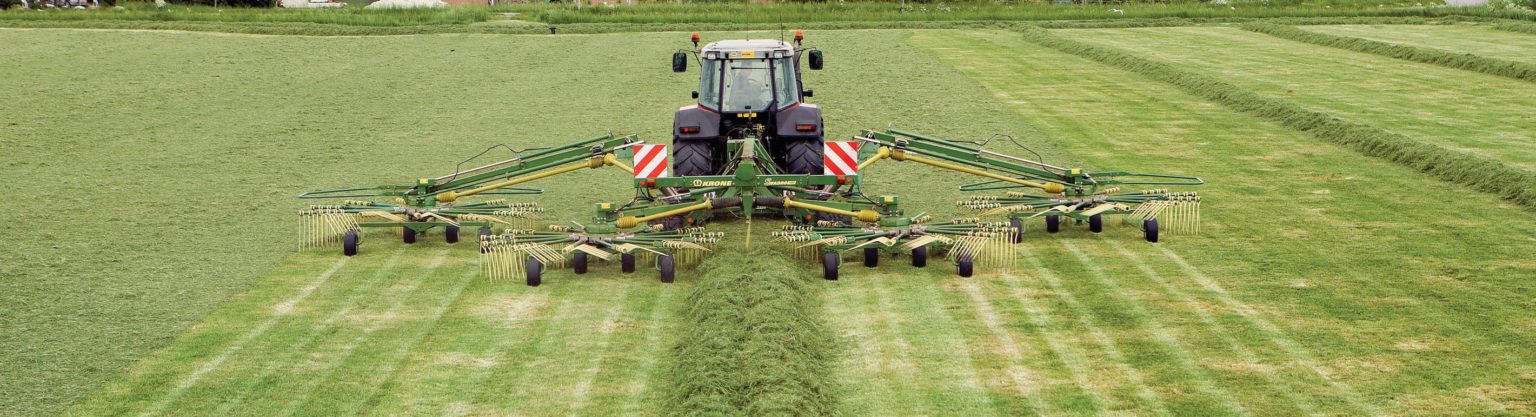

The high-performance four-rotor centre delivery rakes Swadro 1400 and 1400 Plus from KRONE have four rotors that work at variable widths between 11.00 m to 13.50 m and easily achieve work rates of up to 13 ha (32 acres) per hour. These machines stand out for high capacity, quick changeovers, rapid travel, great longevity and easy use. Their enormous efficiency makes Swadro 1400 and 1400 Plus very viable machines that meet the demands of contractors and coops.

FEATURES AND BENEFITS

Krone 2 Rotor Swadro Rakes
- Maintenance-free rotors and rotor gearboxes
- Hard-wearing DuraMax cam tracks with three-year warranty
- Flexible work widths, extra high lift-out
- Variable running gear with adjustable track widths and large tyres
- High ground clearance and high rotor lift-out for easy headland turns

Krone 4 Rotor Swadro Rakes
- Maintenance-free rotors and rotor gearboxes
- Hard-wearing DuraMax cam tracks with three-year warranty
- Variable, up to 13.50 m (44'4") work widths
- Convenient handling from a choice of KRONE operator terminals or an existing in-cab ISOBUS terminal
- Foldable tines (Swadro 1400) or a hydraulically lowering running gear (Swadro 1400 Plus) reduce the transport height to less than 4 m (13'2")

PRODUCT OPTIONS AND SPECS
Krone 2 Rotor Swadro Rakes | ||||
---|---|---|---|---|
TC 640 | TC 760 | TC 880 | TC 930 | |
Working Width (M) | 5.7-6.4 | 6.8-7.6 | 7.6-8.8 | 8.1-9.3 |
Transport Width (M) | 2.54 | 2.72 | 2.86 | 2.86 |
Numbers of Rotors | 2 | 2 | 2 | 2 |
Weight (Kg) | 1,400 | 1,950 | 2,300 | 2,780 |
Min Hp Requirement | 35 | 50 | 55 | 70 |
Krone 4 Rotor Swadro Rakes | ||
---|---|---|
1400 | 1400 PLUS | |
Working Width (M) | 11-13.5 | 11-11.5 |
Transport Width (M) | 2.99 | 2.99 |
Numbers of Rotors | 4 | 4 |
Weight (Kg) | 5,100 | 5,700 |
Min Hp Requirement | 80 | 80 |
