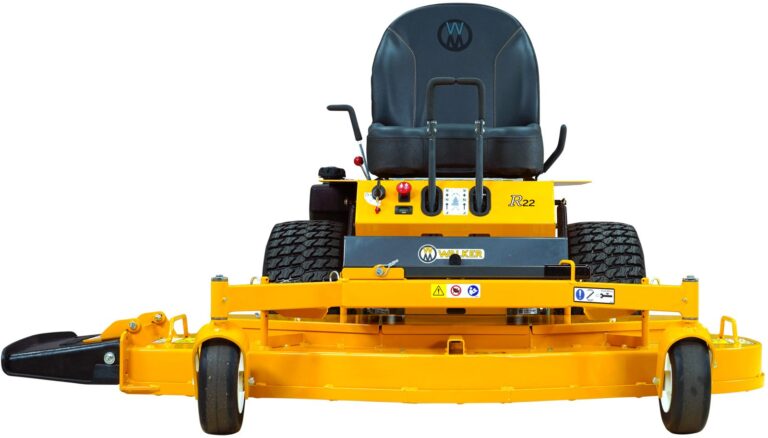

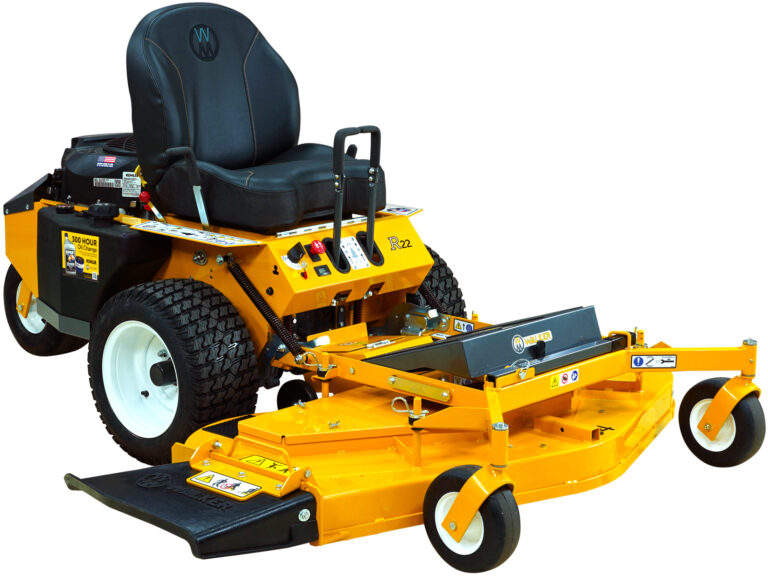

Walker R22 Zero Turn Ride on Mower
The R22 is the perfect machine for residential properties. With a belt-driven deck, operation is smooth and quiet without compromising on any of the Walker Mower’s distinct advantages.
Starting from: $12,126.00 (excl GST)
The perfect residential mower
A variety of improvements have been made to the Model R for better operation, more reliability, and an overall increase in performance. The highlight of these improvements includes using the Kohler KT722 engine. This 22 HP engine has a higher displacement, increased horsepower, and greater torque and is an excellent complement to the earlier updated, larger displacement engine muffler that gives quieter operation.
This machine is a premium Walker Mower priced for residential owners.
Starting Deck Size
Available in 42”- 54” cut widths
Available in 42”- 54” cut widths
42
"
Power Rating*
22
HP+
Ground Speed
11
Kph
Weight with 48" Deck
269
kg
Designed for the Perfect Cut
Shaft driven deck meaning no deck belt to slip or break, and timed cutting blades for the perfect cut.
Easy Servicing

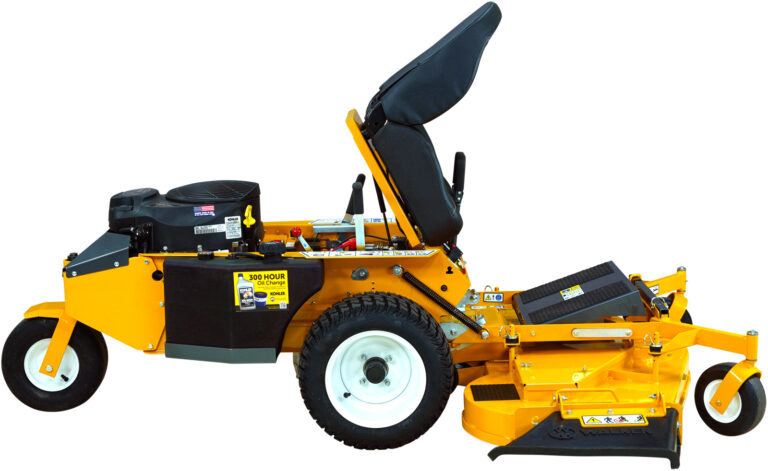

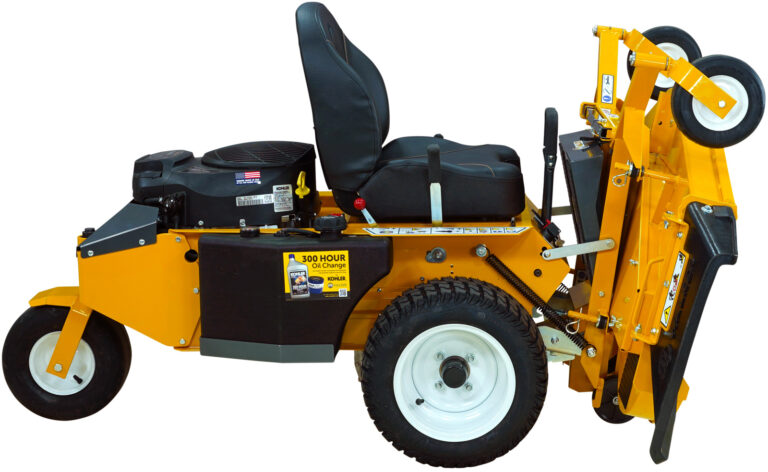

Tilt up body & deck to completely expose drive train. Makes servicing fast and simple.
Great on sloping terrain
A low centre of gravity and shaft drive deck gives this great performance on sloping terrain.
Photo Gallery
Options & Specifications
| Type | Non-Collection (Residential) |
|---|---|
| Engine | Kohler KT722 |
| Fuel System | Carbureted |
| Cooling System | Air |
| Displacement | 747 cc (45.6 cu. in.) |
| Max Power | 22 HP @ 3600 RPM |
| Max Torque | 40.4 ft-lbs |
| Fuel | Unleaded Gasoline (min. 87 octane) |
| Fuel Capacity | 3 gal (11.4 L) |
| Electrical | Battery: 12V, 300 CCA Charging System: Flywheel Alternator Output: 18 Amp DC (Regulated) |
| Transmission | Dual Hydro-Gear ZT-2200 Integrated Transaxles Steering: Hand Lever Control, Individual Wheel Forward Speed Control: Friction Lock Lever with Cruise & Neutral-Park Parking Brake: External Cog Lock Forward Speed: 0–7 mph (0–11 km/h) Neutral: Manual Dump Valve |
| Blade Drive | PTO: N/A Clutch/Brake: Electric Clutch with Brake (stops blades within 5s) |
| Grass Handling | Optional Accelerator® Grass Catcher Capacity: 31 gal (116 L) |
| Deck | Recommended Cut Widths — Side Discharge: 42–54 in. (107–137 cm), Mulch: 42–48 in. (107–122 cm) Cutting Height: 1.5–4 in. (4–10 cm) Suspension: Independent Torsion-Flex Frame with Casters & Counterweight Springs |
| Tires | Drive: 18×8.50-10 Pneumatic 4-Ply (Low Profile) Tailwheel: 13×6.50-6 Pneumatic 4-Ply Deck Casters: 8×3.00-4 Semi-Pneumatic |
| Seat | Standard Seat (Comfort Seat optional) |
| Dimensions | Length: 96 in. (244 cm) with S48 deck; 74 in. (188 cm) with deck tilted; Wheelbase 39 in. (99 cm) Width: 39 in. (99 cm) Tractor only; 49 in. (124.5 cm) with S48 deck Height: 42 in. (107 cm) |
| Weight | 404 lbs (183 kg) Tractor Only 593 lbs (269 kg) with S48 Deck |
| Popular Add-ons | Comfort Seat, LED Headlight Kit, Accelerator Grass Catcher |
Specs are subject to change without notice
Tyre Wise Fee Applies With This Product
Please note that the Tyrewise fee of $36 applies. Tyrewise is Aotearoa New Zealand's national product stewardship scheme for recycling end-of-life tyres. Funded by a stewardship fee on new tyre purchases, it aims to prevent used tyres from being dumped or sent to landfills and instead repurpose them into new products.
