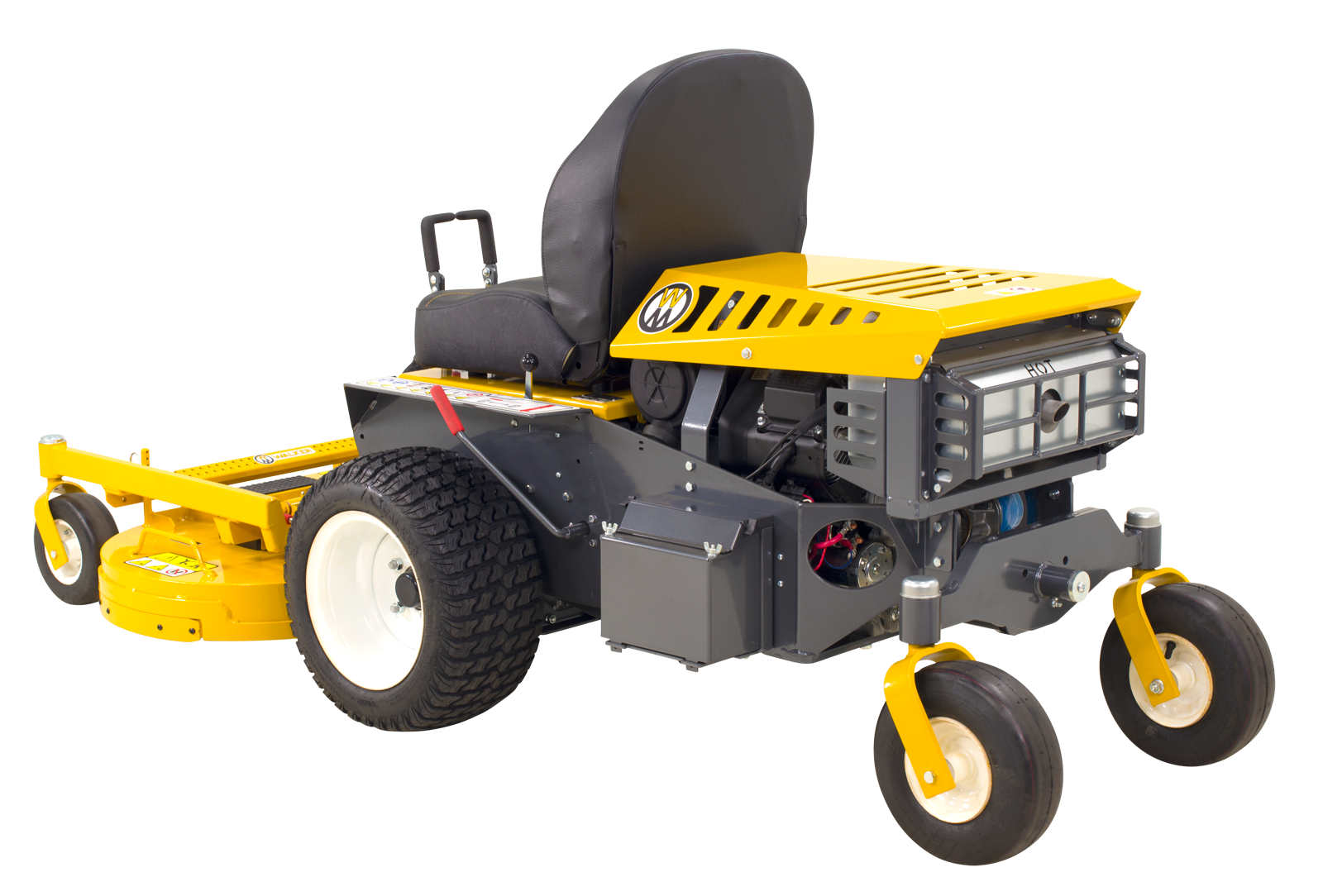

Walker B23/B27i Zero Turn Ride on Mower

Perfect for users looking for carbureted, commercial mowing power, the Walker B23 packs a lot of muscle into a compact footprint.
Starting from: $23,039.00 (excl GST)

Legendary designed deck for the perfect finish

The B series are Walkers non-catching compact range, and their best priced mower. With the out front legendary Walker designed deck, the finish is perfect. Can be fitted with side discharge/mulch decks. Available in two engine sizes.



Starting Deck Size
Available in 42”, 48” or 54” cut widths
42 "
Power Rating*
23 HP+
Ground Speed
12.5 Kph
Weight with 48" Deck
368 kg

Designed for the Perfect Cut

Shaft driven deck meaning no deck belt to slip or break, and timed cutting blades for the perfect cut.

Easy Servicing

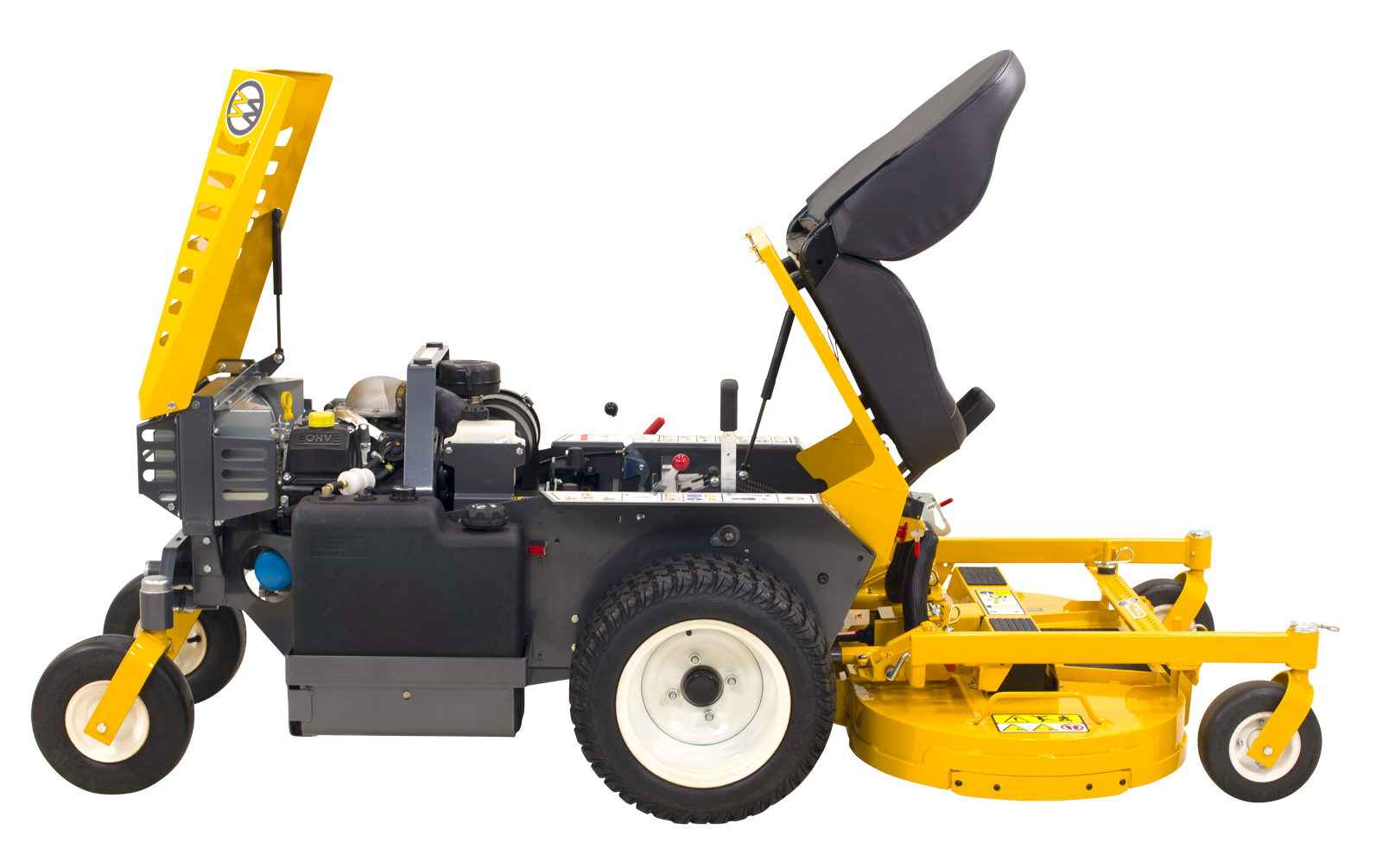

Tilt up body & deck to completely expose drive train. Makes servicing fast and simple.

Great on sloping terrain

A low centre of gravity and shaft drive deck gives this great performance on sloping terrain.

Remote Air Filtration

Remote air filtration system for increased engine life.

Zero Turn Performance

True Zero turn performance with one handed steering operation.

Commercial and Rural

Commercial grade machine offering great performance and value.

Photo Gallery

Options & Specifications

B23 — Overview
EngineKohler CH680
Fuel SystemCarb
Cooling SystemAir
Displacement674 cc (41.1 cu. in)
Max Power22.5 HP @ 3600 RPM
Max Torque36.8 ft-lbs
Fuel Capacity4.7 gal (17.8 L)
SeatComfort Seat
Tyres18 x 8.5-10 (Pneumatic 4-Ply Low-Profile)
Weight600 lbs (272 kg)[1]
806 lbs (368 kg)[2]
Dimensions39.5 in (100 cm) H × 49 in (125 cm) W × 90.75 in (230 cm) L[2]
[1] Tractor only. [2] Tractor with M48 deck. [3] Tractor with M52 deck.
B23 — Detailed Specifications
ManufacturerKohler
ModelCH680
Governed RPM3600
FuelAutomotive Grade Unleaded Gasoline (87 Octane min, 10% Ethanol max)
Electrical
  • Battery: 12V, 340CCA
  • Charging System: Flywheel Alternator
  • Charging Output: 20 Amp DC (Regulated)
Transmission
  • Manufacturer/Model: Dual, Independent Hydro-Gear® ZT3100 Integrated Transaxles
  • Steering: Hand Lever Control, Individual Wheel
  • Forward Speed Control: Precision friction lock lever, cruise control, with neutral-park position
  • Parking Brake: Internal mechanical cog lock (single lever control)
  • Forward Speed: 0–8 MPH (0–13 km/h), infinitely variable
  • Neutral: Transmission release by manual dump valve
Blade Drive
  • PTO Shaft: Quick disconnect splined shaft with two high-speed U-joints
  • Clutch/Brake: Ogura electric clutch with soft start; mechanical brake stops blades within 5 seconds
Deck
  • Recommended Cut Width: Side discharge: 36–74 in (91–188 cm); Mulch: 36–52 in (91–132 cm)
  • Cutting Height: 1.5–4 in (4–10 cm); 1.5–4.5 in (4–11.5 cm) on DS52 & DS62 belt-driven decks
  • Deck Suspension: Independent Torsion-Flex frame with caster wheels and counterweight springs
Tyres
  • Drive: 18 x 8.50-10 (Pneumatic 4-Ply Low-Profile)
  • Tailwheel: 11 x 4.00-5 (Pneumatic 6-Ply)
  • Deck Caster: 8 x 3.00-4 (Semi-pneumatic; all decks except DS52/DS62/DS74). Optional 8 x 3.00-4 Pneumatic 4-Ply (except DS52/DS62/DS74)
Size & Weight
  • Length: Tractor only 63 in (160 cm); with M48 deck 90.75 in (230 cm); deck tilted 72 in (183 cm); wheelbase 40 in (102 cm)
  • Width: Tractor only (outside tyre) 38.5 in (98 cm); with M48 deck 49 in (125 cm)
  • Height: Tractor 39.5 in (100 cm)
  • Weight: Tractor only 600 lbs (272 kg); with M48 deck 806 lbs (368 kg)
B27i — Overview
EngineKohler ECH749
Fuel SystemEFI
Cooling SystemAir
Displacement747 cc (45.6 cu. in)
Max Power26.5 HP @ 3600 RPM
Max Torque40 ft-lbs
Fuel Capacity4.7 gal (17.8 L)
SeatComfort Seat
Tyres18 x 8.5-10 (Pneumatic 4-Ply Low-Profile)
Weight606 lbs (275 kg)[1]
812 lbs (385 kg)[3]
Dimensions39.5 in (100 cm) H × 49 in (125 cm) W × 90.75 in (230 cm) L[2]
[1] Tractor only. [2] Tractor with M48 deck. [3] Tractor with M52 deck.
B27i — Detailed Specifications
ManufacturerKohler
ModelCH680
Governed RPM3600
FuelAutomotive Grade Unleaded Gasoline (87 Octane min, 10% Ethanol max)
Electrical
  • Battery: 12V, 340CCA
  • Charging System: Flywheel Alternator
  • Charging Output: 20 Amp DC (Regulated)
Transmission
  • Manufacturer/Model: Dual, Independent Hydro-Gear® ZT3100 Integrated Transaxles
  • Steering: Hand Lever Control, Individual Wheel
  • Forward Speed Control: Precision friction lock lever, cruise control, with neutral-park position
  • Parking Brake: Internal mechanical cog lock (single lever control)
  • Forward Speed: 0–8 MPH (0–13 km/h), infinitely variable
  • Neutral: Transmission release by manual dump valve
Blade Drive
  • PTO Shaft: Quick disconnect splined shaft with two high-speed U-joints
  • Clutch/Brake: Ogura electric clutch with soft start; mechanical brake stops blades within 5 seconds
Deck
  • Recommended Cut Width: Side discharge: 36–74 in (91–188 cm); Mulch: 36–52 in (91–132 cm)
  • Cutting Height: 1.5–4 in (4–10 cm); 1.5–4.5 in (4–11.5 cm) on DS52 & DS62 belt-driven decks
  • Deck Suspension: Independent Torsion-Flex frame with caster wheels and counterweight springs
Tyres
  • Drive: 18 x 8.50-10 (Pneumatic 4-Ply Low-Profile)
  • Tailwheel: 11 x 4.00-5 (Pneumatic 6-Ply)
  • Deck Caster: 8 x 3.00-4 (Semi-pneumatic; all decks except DS52/DS62/DS74). Optional 8 x 3.00-4 Pneumatic 4-Ply (except DS52/DS62/DS74)
Size & Weight
  • Length: Tractor only 63 in (160 cm); with M48 deck 90.75 in (230 cm); deck tilted 72 in (183 cm); wheelbase 40 in (102 cm)
  • Width: Tractor only (outside tyre) 38.5 in (98 cm); with M48 deck 49 in (125 cm)
  • Height: Tractor 39.5 in (100 cm)
  • Weight: Tractor only 600 lbs (272 kg); with M48 deck 806 lbs (368 kg)

Specs are subject to change without notice

Tyre Wise Fee Applies With This Product
Please note that the Tyrewise fee of $36 applies. Tyrewise is Aotearoa New Zealand's national product stewardship scheme for recycling end-of-life tyres. Funded by a stewardship fee on new tyre purchases, it aims to prevent used tyres from being dumped or sent to landfills and instead repurpose them into new products.
