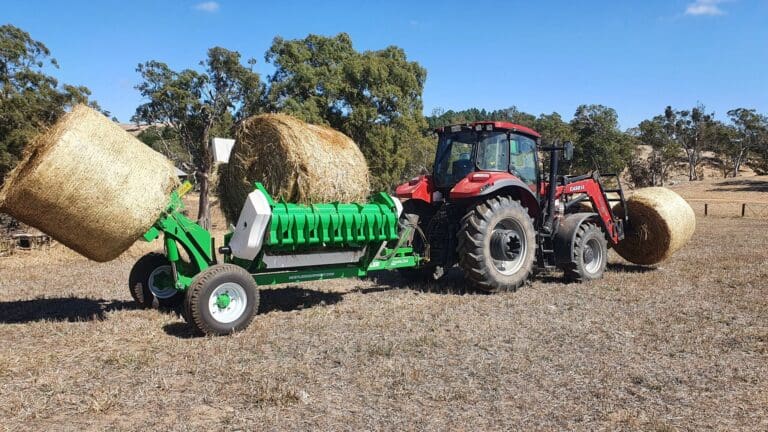

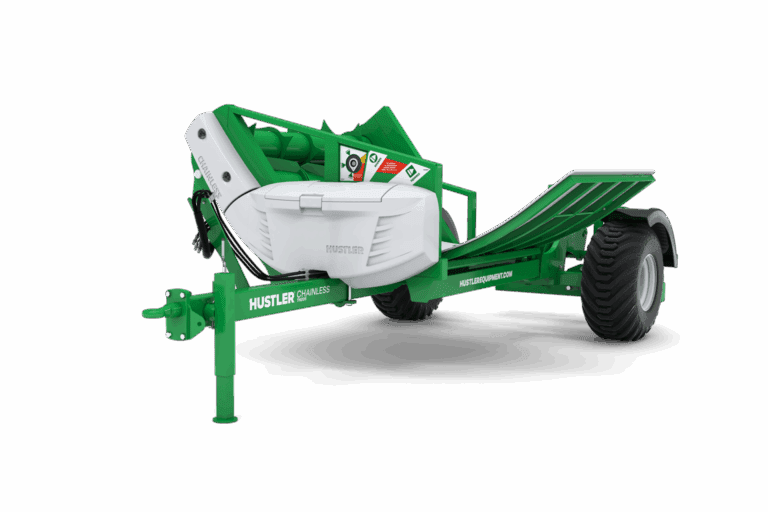

Hustler Trailed Chainless Bale Processors – TX205/TH205
Feed out literally any round or square bale of any forage type with the Hustler Chainless. Even the tightest hard center bales and frozen bales are no match for Chainless.
Starting from: $31,990.00 (excl GST)
Pull-type, Self-Loading, Chainless Round & Square Bale Feeder.

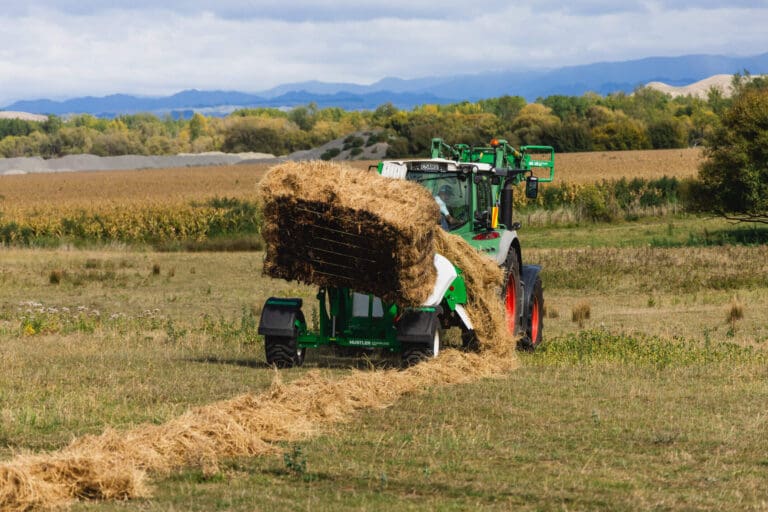

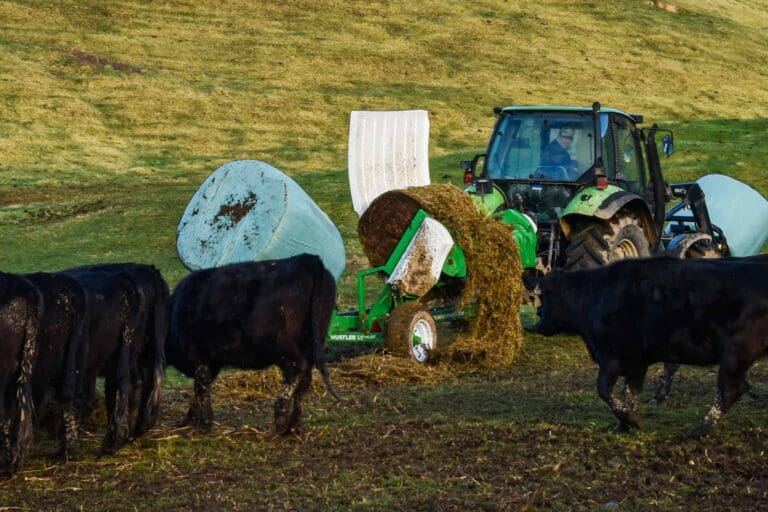

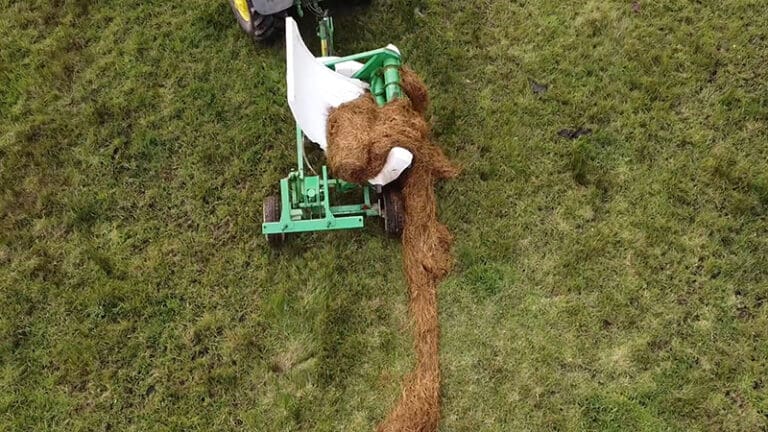

The Chainless trailed square and round bale feeders are self-loading, suitable for feeding out any bale, round or square, and it maximises feed use. Designed for medium to large operations. A Chainless feed out cart minimises feed waste by feeding out into narrow windrows to make the feed more accessible to animals and all but eliminate damage from hoof trampling, manure spoilage, and animals laying down on the feed. More efficient use of power, savings on machinery investment and faster bale feeding all add up to impressive fuel economy made possible by the hydraulic drive system at the heart of every Hustler Chainless trailed bale processor.
5 reasons to choose a Chainless TH205
1. What's New?
- Excavator bushes & induction hardened pivots in loading system
- New indestructible puckboard table with 10 year warranty!
- Beefier chasis, platform, and loading system
- Increased lifting power
2. Feeds any Bale Type Shape or Size
The Chainless Trailed Bale Feeder is the most versatile Bale Feeder, it will feed out any bale round, square, tight, soft, short, long, dry and wet bales with ease.

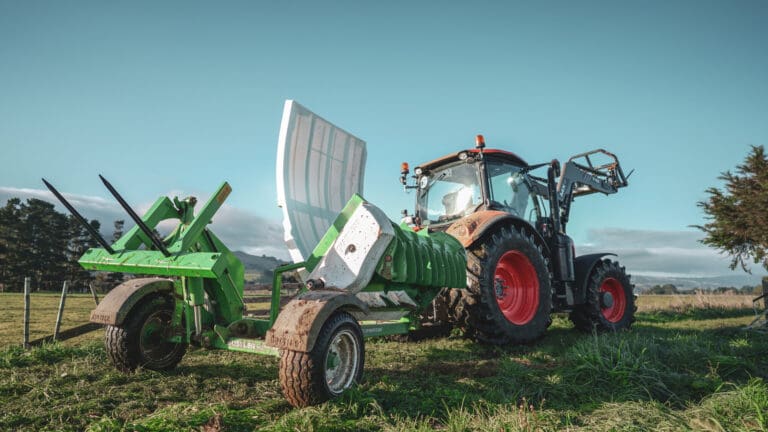

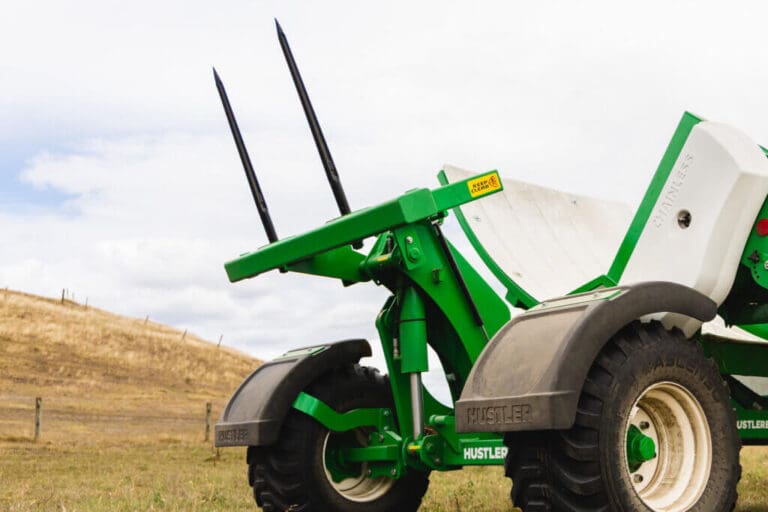

3. Total Control 2 Loading System

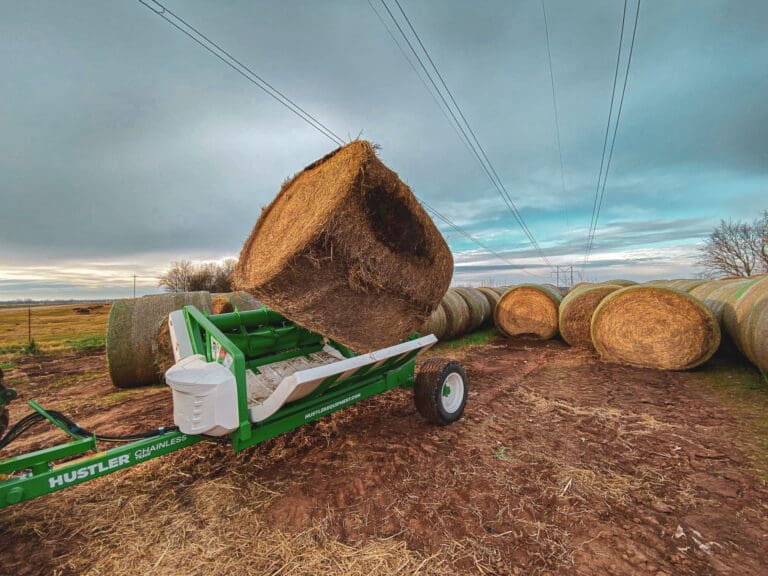

This gives you total control overloading the bale. The simple, reliable and fool-proof single cylinder design of the Hustler loading system is safer than other loading systems and allows unwrapping of the bale above the feed cradle, reducing waste. The Hustler loading system can be reversed if the operator decides not to load that bale. It also has more support area for soft or square bales. The Chainless square and round Bale Feeder delivers more leverage, stronger design and larger 1.5-tonne (3,300 lb) capacity.

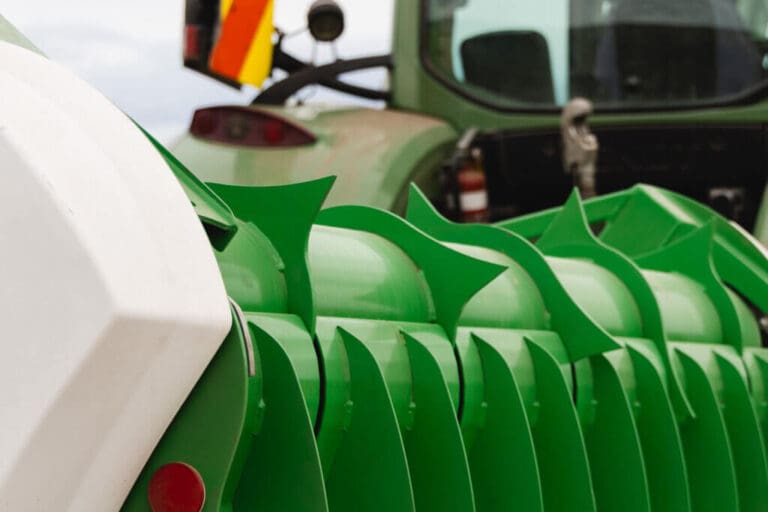

4. Easy Clean Hypaflo Wiper Panel
The newly developed wiper panel that clears the hay from the rotors better. It has a new quick release latching system for releasing the panel to clean out any hay.
5. 5 year warranty!
All backed with the Hustler industry best 5-YEAR WARRANTY – for peace of mind, knowing you’ve got backup and support that’s been well proven for 60 years.
See It In Action
- All
- Guides
- Testimonials
- All
- Guides
- Testimonials

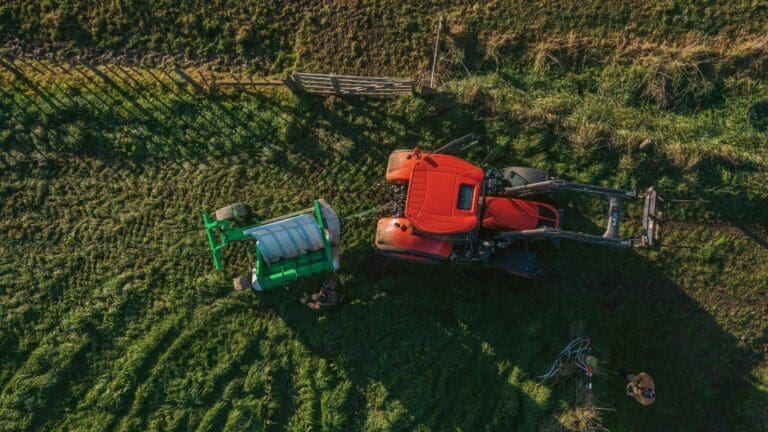

Photo Gallery
Options & Specifications
| Bale Sizes Round: | Up to 5’ x 6’ |
| Bale Sizes Square: | All sizes (over 6’ long requires optional platform extension) |
| Bale Weight: | Up to 1500kg | 3,306 lb ea |
| Unit Weight: | 1400kg | 3,100lbs |
| Hydraulics Required: | 2 x double-acting, (8-16gal/min), 2250-3000 psi |
| Capacity: | 2 bales (round or square) |
| Tynes: | 2 x forged high-tensile |

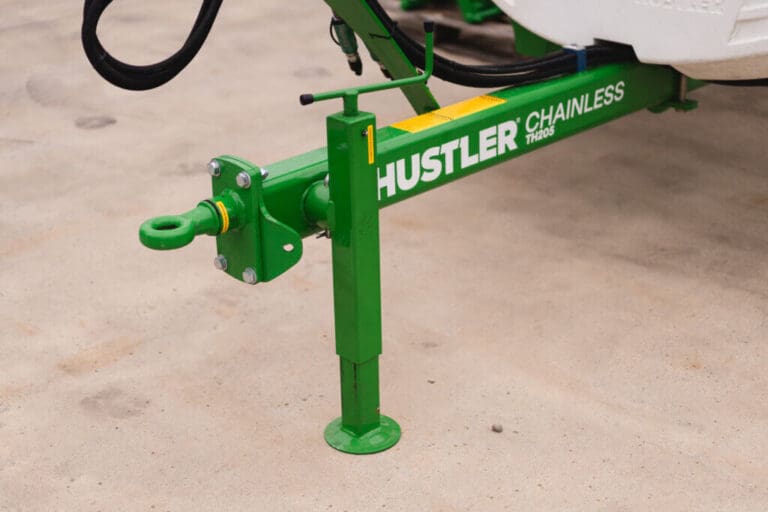

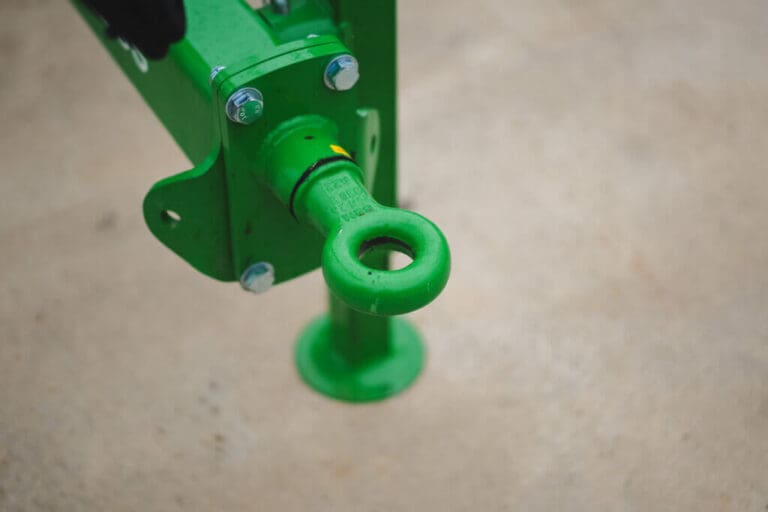

| Towing Eye: | Adjustable height, 45 mm swiveling forged | 1.7 in swiveling forged, 12t rated | 26,450 lb rated |
| Axles: | 6 stud, 57mm | 2.25” square |

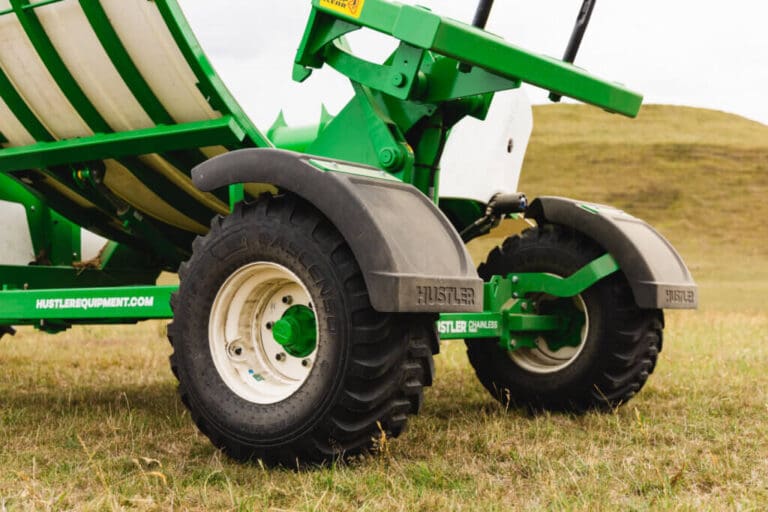

| Wheels: | 400/60-R15.5 |

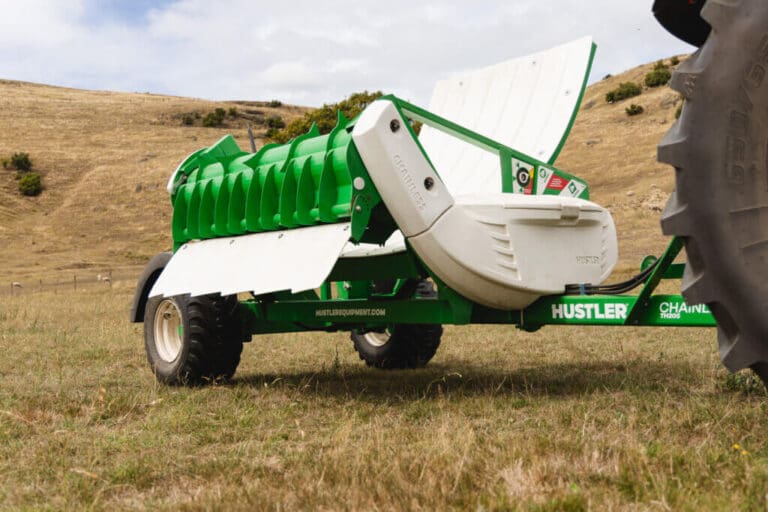

| Ground Clearance: | 495mm | 19.5 in |
| Loading | Patented Total Control self-loading system |
| Size (L x W x H): | 1930 x 1956 x 1270mm | 76 x 77 x 50 in |
| Limited Stock | |
| Bale Sizes Round: | All sizes up to 5’ X 6’ |
| Bale Sizes Square: | All sizes. Over 6’ long requires optional platform extension |
| Bale Weight: | Up to 1,500 kg ea | Up to 3,306 lb ea |
| Unit Weight: | 1,180 kg | 2600 lb |
| Hydraulics Required: | 2 x double-acting, 30-60 litres/min | 8-16 gal/min, 2250-3000 psi |
| Capacity: | 2 x bales (round or square) |
| Tynes: | 2 x Forged high tensile |
| Towing Eye: | Adjustable height, 45 mm swiveling forged | 1.7 in swiveling forged, 12t rated | 26,450 lb rated |
| Axles: | 6 Stud, 60 mm Square | 2 in Square |
| Wheels: | 11.5/80-R15.3 |
| Ground Clearance: | 443 mm | 17 in |
| Loading | Self-Loading |
| Size (L x W x H): | 4467 x 2410 x 1669 mm | 175 x 94 x 65 in |
Specs are subject to change without notice
