Hustler LoadMax Tip Trailer
Owners are telling us the Hustler LoadMax trailers are overbuilt, and handle way more than their rated capacity.
Starting from: $39,980.00 (excl GST)
Trailers that push every boundary to the max.
The world’s best farmers have been asking for a tough, versatile trailer that saved them time and hassle with any on-farm handling duties, so they could get more done every day. So that’s what we built into our 8, 10 and 14 tonne models.
Our new series 2 builds upon the solid foundations of our tough multi-purpose trailers and includes new features and refinements to keep them ahead of the herd.
5 Reasons to Choose LoadMax
1. Versatility
From the folding, load-bearing headboard, 2-piece folding and removable sides with center and corner posts that serve as bolsters, 2-way swinging tailgate, massive toolboxes, and the largest deck size in its class LoadMax is designed as the most versatile trailer on the market be it for transporting Dirt, Rocks, Manure, Bales, Bags, Logs, Pipes, you name it LoadMax is ready.
2. Unique convenience features
LoadMax comes standard with 8 unique operator convenience features including:
- Hassle-free hydraulic tailgate release
- Massive toolboxes on both sides of chassis
- The angled top of sides to prevent material build-up and spillage
- 2-way swinging tailgate
- Folding, load-bearing headboard
- Lifting eyes on sides and tailgate
- Central greasing
- Quick-Lift, centre mounted jack
3. Tough and low-maintenance
With an oversized chassis, reinforced sides and tailgate, longer-lasting steel deck, our proven axles system with the largest pivot surface area in the industry, central greasing point for axles, hydraulic tailgate release, durable ArmaCoat powder finish, LoadMax is built for a longer hassle-free lifespan, and great resale value

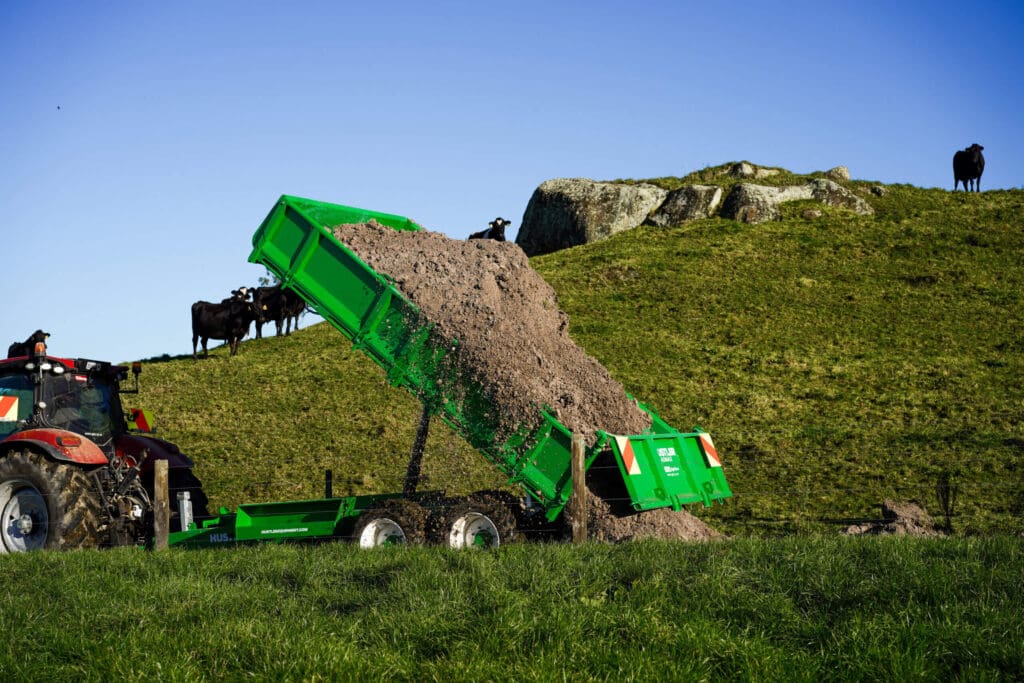

4. More Tipping Power
A steeper tipping angle, taller sides, and high-pivot tailgate make for easy off-loading of even the stickiest of materials. The powerful multi-stage cylinder minimizes the oil capacity requirement and provides a generous redundancy in lifting power. Our cylinders use chrome shafts for longevity and reduced maintenance.
5. Ready for all conditions
LoadMax is fitted with large floatation tyres as standard which make it ready for all-terrain and weather conditions. In situations where trucks would probably give up, a tractor-towed tip trailer can power through, thanks to wide flotation tyres and excellent oscillation.
Photo Gallery
Options & Specifications
| Deck size | 4000 x 2400 mm | 157.4 in x 94.4 in |
| Side height | 500 mm | 19.4 in |
| Capacity (load-level) | 4.8 m³ | 6.2 yd³ |
| Lift capacity | 8 Tonnes | 17,600 lb |
| Wheels | 400/60 x 15.5 |
| Axle size (tandem) | 70 x 6 stud walker |
| Eye type | 2” Swivel |
| Sides | Single-piece sides |
| Tailgate | Dual swing |
| Tailgate trip | Hydraulic |
| Tipping angle | 58º |
| Hydraulics required: | 1 x double-acting, 20-40 litres/min (5.3-10.5 gal/min), 2610 psi maximum |
| Tare weight: | 2970 kg | 6548 lb |
| Deck size | 4500 x 2400 mm | 177.1 in x 94.4 in |
| Side height | 500 mm | 19.4 in |
| Capacity (load-level) | 5.4 m³ | 7 yd³ |
| Lift capacity | 10 Tonnes | 22,000 lb |
| Wheels | 400/60 R 15.5 |
| Axle size (tandem) | 70 x 6 stud walker |
| Eye type | 2” Swivel |
| Sides | Two-piece sides |
| Tailgate | Dual swing |
| Tailgate trip | Hydraulic |
| Tipping angle | 60º |
| Hydraulics required: | 1 x double-acting, 20-40 litres/min (5.3-10.5 gal/min), 2610 psi maximum |
| Tare weight: | 3330 kg | 7341 lb |
| Deck size | 4800 x 2660 mm | 188.9 in x 104.7 in |
| Side height | 650 mm | 25.5 in |
| Capacity (load-level) | 8.3m³ | 10.8 yd³ |
| Lift capacity | 14 Tonne | 30,800 lb |
| Wheels | 500/50 x 22.5 |
| Axle size (tandem) | 80 x 8 stud walker |
| Eye type | 2” Swivel |
| Sides | Two-piece sides |
| Tailgate | Dual swing |
| Tailgate trip | Hydraulic |
| Tipping angle | 60º |
| Hydraulics required: | 1 x double-acting, 20-40 litres/min (5.3-10.5 gal/min), 2610 psi maximum |
| Tare weight: | 4180 kg | 9215 lb |
Specs are subject to change without notice
