Hustler GrappleMax Grapple Buckets
The ultimate grapple bucket for livestock farmers who demand nothing but the very best and want a versatile attachment for handling, loading and feeding round or square bales and other commodities.
Starting from: $13,990.00 (excl GST)
The ultimate grapple bucket for livestock farmers who demand nothing but the very best.
Get the job done, whatever it may be, with GrappleMax grapple bucket. The super tough design, combined with clever use of the highest-grade materials and built-in protection for the vital parts could be the last grapple bucket you ever buy!
Tapered bucket design
The top of the bucket is narrower than the bottom floor, and the back of the bucket is narrower than the bucket opening. This design enables easier material emptying and reduces corner clogging when handling sticky materials.
Triple-section reinforced bucket design
Unlike other buckets, GrappleMax has three hollow sections, providing unparalleled torsional strength, unbeatable durability, and a long life.
Load Dividing System
Proven over 43 years the unique and simple dividing system of Combi reduces loads and stresses on drives, motors, shafts and the floor extending the working life of the feeder.
Wear plates built-in
Cutting edge made from RockGuard 500 (AR500) wear plate, and bucket floor and side wear plates built from RockGuard 400 wear plate ensure GrappleMax is the longest-lasting grapple bucket in the game.

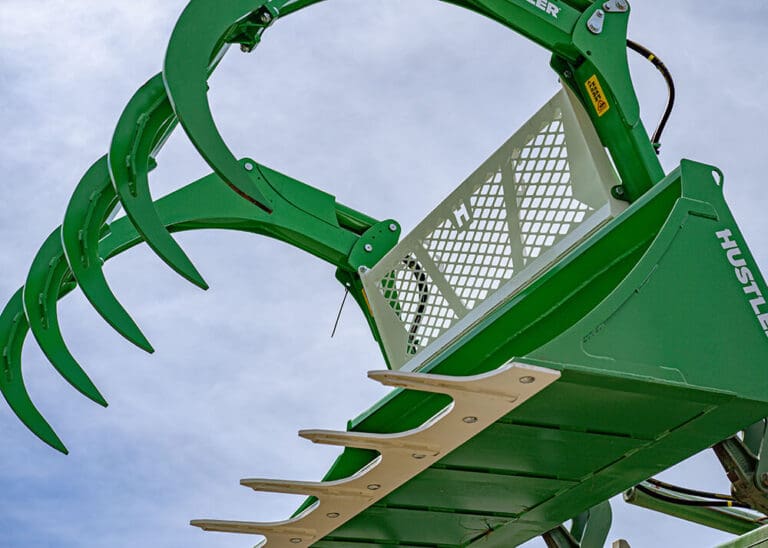

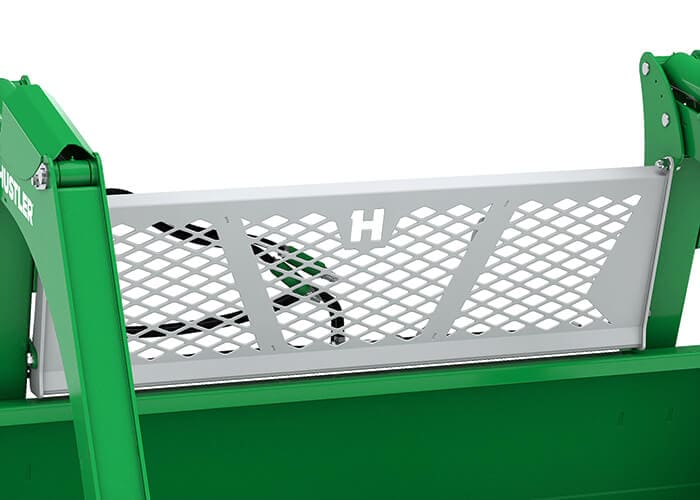

Strong spill guard grill
We addressed a common failure in other grapple buckets with a tough RHS-reinforced grill featuring a large mesh design for excellent visibility.

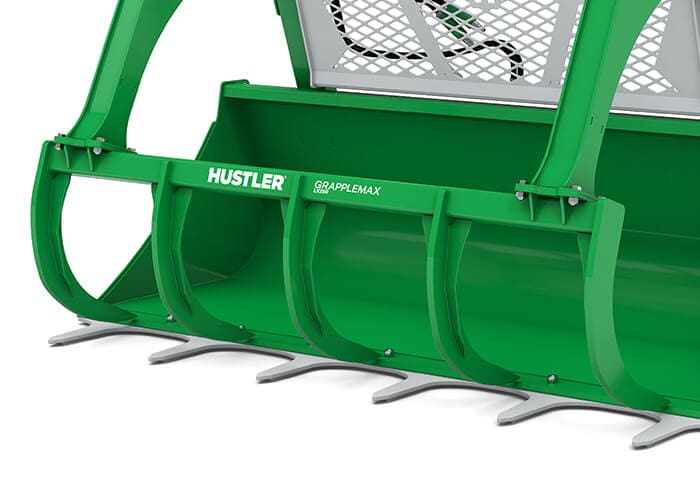

Reinforced tines that don’t come loose
GrappleMax has five large tines made from RockGuard 400 (AR400) wear plate, reinforced and welded to prevent loosening or bending.
Photo Gallery
Options & Specifications
| Quick attach mounts: | Euro / Global |
| Colours: | Anthracite Gray or Mint Green |
| Unit Weight: | 640 kg | 1410 lb |
| Dimensions (Depth x Width x Height): | 1454 x 2440 x 1431 mm (720 mm bucket only) | 57.2 x 96 x 56 in (28.3 in bucket only) |
| Bucket capacity: | 1.23 m³ | 43 ft³ |
| Full grapple capacity: | 5.0 m³ | 176 ft³ |
| Grapple tines: | Replaceable 5x RockGuard™ 400 (AR400) reinforced tines |
| Jaw opening: | 2.13 m | 84 in |
| Clamp: | Twin-ram |
| Hydraulic required: | 1x Set |
Specs are subject to change without notice
