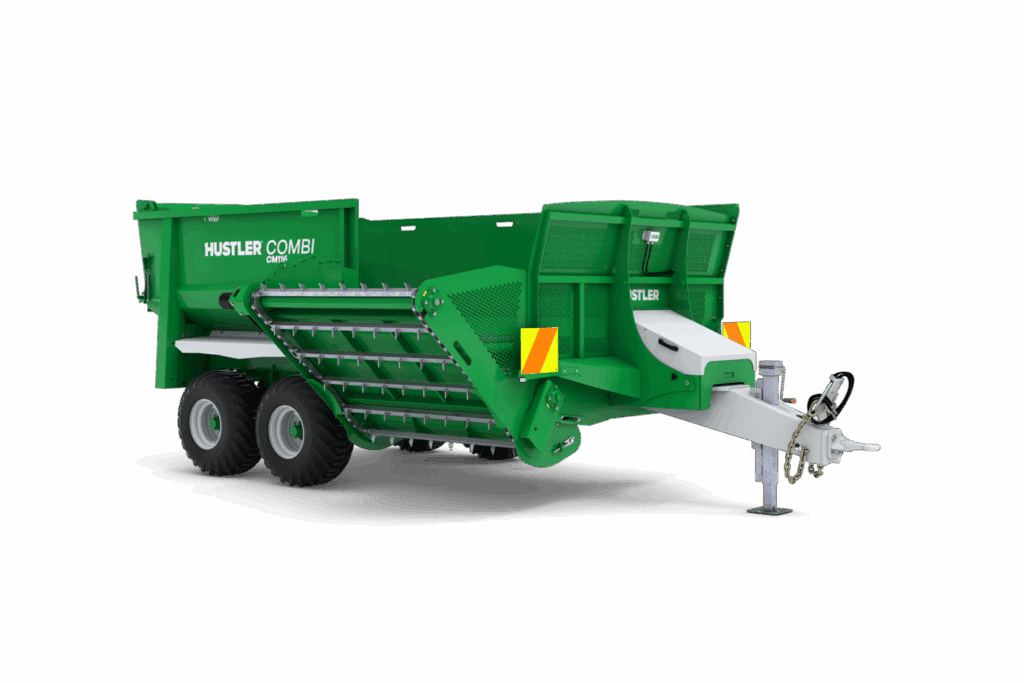

Hustler Combi CM Multi-Feeder – CM116
All Round & Square Bales, Silage, Root Crops & Food Waste
Price: POA
How do you make the best better?
Hustler’s latest Combi CM livestock feeders come loaded with features – 43 years proof in the field is one of them. Combi’s Feed anything ability paired with Hustler’s mindset of continual improvement with regular constructive feedback from farmers around the world and you’ve got the best of the best.
Don’t just take our word for it, see the CM in action on your farm by calling a Hustler livestock feeding expert on the number at the top of this page.
Unbeatable Versatility - One Machine Any Feed
If you’re feeding a variety of bales, silage or any other supplementary feed, then a Combi CM is the only feeder you’ll need. The Combi Feeder range is able to feed all types, shapes and sizes bales including straw, hay and baled silage, fine chop silage, maize silage, root crops and literally any type of feed you can lay your hands on. The unique elevator design delivers feed out of the side of the machine allowing you to feed into troughs, feed-pads, bunks or open pasture without spillage

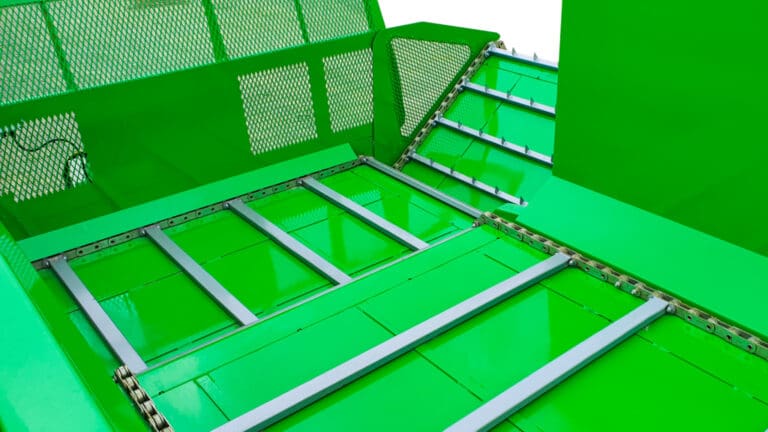

Toughest Chain & Bar setup on the market
Using a basic principal from the tractor pull sled vs wheels, with Combi CM instead of dragging the load forward like a sled we used 12,000lb roller chains on all floors to substantially lowering the drag on the drives, chains and bars, kissing good-bye to chain problems!
And by using a single bar set up on each floor by build bars stronger than twin floor bars eliminated the need for extra sprockets, bearings, wearing parts and on-going maintenance
Load Dividing System
Proven over 43 years the unique and simple dividing system of Combi reduces loads and stresses on drives, motors, shafts and the floor extending the working life of the feeder.

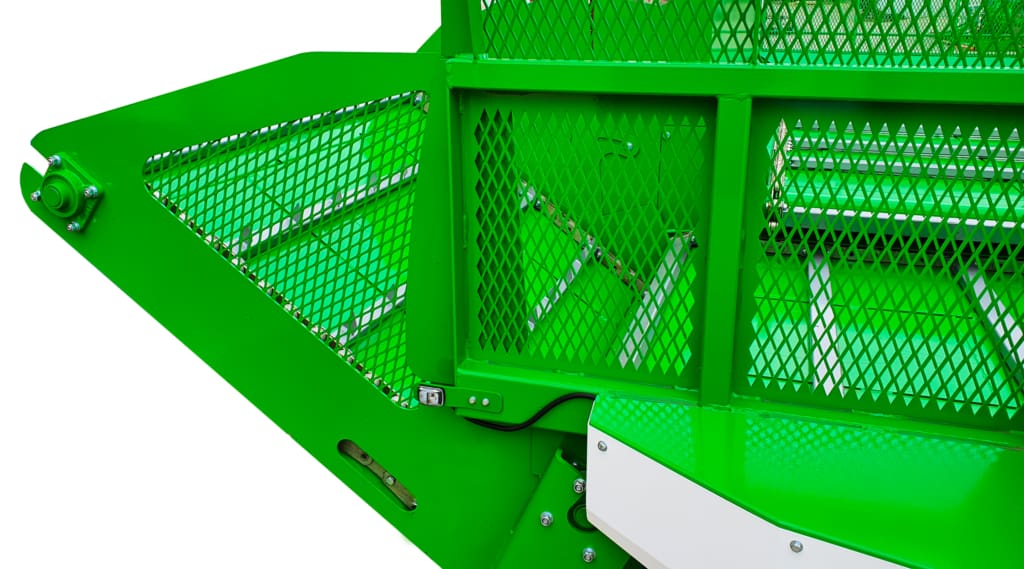

Unbeatable Visibility
With the industry-leading visibility and the ability to see the entire load from the comfort of your seat feeding out the perfect feed-rows has never been easier and puts you in control! Even with the new elevator spill panels, now you can see exactly how much feed is coming up the elevator for improved feed control.

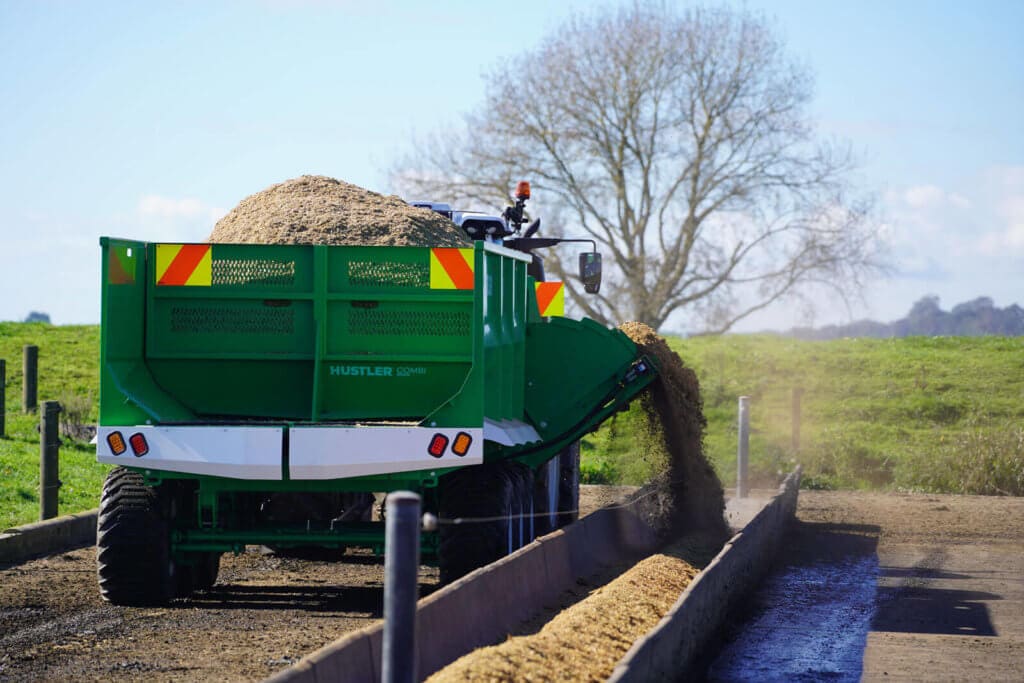

Accurate Feed Delivery
The Combi CM Feeders are scale ready as standard, which allows you to add the weighing option when it suits your operation so you can accurately measure the correct amount your herd needs, reducing waste and increasing the performance of your farm. And the tilting elevator makes for accurate bunk or trough feeding minimizing spillage.
Quick, Safe & Easy Loading
The low loading height of the Combi CM Range and great visibility make loading of any feed material or fodder with tractor loader quick and easy. And thanks to farmer feedback the sides are now higher to prevent second stacked bales from spilling during transport
Tried & True Control System
The Combi CM Range comes standard with the original Combi control system which has taken more than 4 decades to perfect providing the operator with full control over each floor for more versatility when feeding bales or chopped feeds.
Massive Drawbar Clearance
The unique and improved drawbar design offers industry-leading clearance and a major advantage in maneuverability making life easier for operators in tight lanes and gateways. This reduces the possibility of damaged gate posts or the machine due to operator error.
Photo Gallery
Options & Specifications
Specs | Combi CM116 |
|---|---|
Round Bales: | 3-6 |
Medium Squares: | 3-6 |
Large Squares (8ft): | 1-2 |
Loose Silage (load-level): | 11 m³ | 386 ft³ |
Loose Silage (heaped load): | 12.5 m³ | 440 ft³ |
Maximum Load: | 8,000 kg | 17,636 lb |
Overall Width / Height / Length | 2720 mm | 107 in / 6385 mm | 251.3 in / 2300 mm (90.5 in) / 2150 mm (84.6 in) |
Tare Weight: | 3,590 kg | 794.5 lb |
Standard Tyres: | 400 / 60 x 15.5 Flotation Grip Tread |
Axle: | Tandem Walking Beam |
Brakes: | Optional 2 or 4-wheel braking |
Floor material: | Welded Steel |
Chains (Bed / X floor / Elevator): | Twin 12,000 lb Roller Chains |
Feed Bars (Bed / X Floor / Elevator): | 65 x 35 RHS / 65 x 35 RHS / 40 x 40 RHS |
Joystick: | Standard in-cab electric joystick |
Hydraulics Required: | 2 x double-acting |
Hydraulic Flow: | 50-70 L/min (80 L/min maximum) | 13.2-18.5 gal/min (21.1 gal/min maximum) |
Hydraulic Pressure: | 2050-2500 psi | 140-170 bar |
Elevator: | 1645 mm | 64.7 in wide chain/slat |
Jack: | 80 mm | 2-speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand |
Towing Eye: | 50 mm | 3.1 in swiveling forged eye
|
Specs are subject to change without notice
