Arcusin Multipack Bale Bundler D14/E14
MultiPack E14: The first ever bundler to work with 2 & 3-tie bales
Price: POA
What’s unique about this bundler?
The Multipack was the first bale bundler to hit the market more than 25 years ago. For the first time, farmers were able to automate the collection and storage of small square bales and become much more profitable.
With the launch of the latest model, the Multipack E14, arcusin bring more compaction than ever before. For the first time ever, arcusin offer customers the possibility to work with any and all size bales, even the bigger 3-tie bales. Size is not an issue!
This revolutionary machine is reshapping the small bale handling market, offering a system that eliminates unproductive, labour-intensive work and increases the efficiency of thousands of farms around the world.
Automatic working cycle

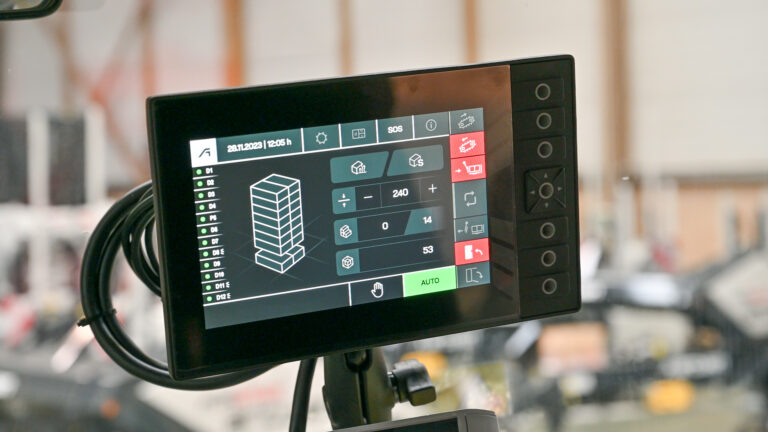

Monitored from display in the tractor cabin
Vertical & lightweight design
Extremely agile, can get in tight spaces & difficult terrains
Bale length variability
Choose any size bale from 80-120 cm (32-48 in) without adjustments
Large & flexible entry guide
Picks up small bales laying on any direction
Performance 700 bales/hour
Dependent on baled product & field conditions
Small tractor
No need to invest in a big tractor, 80 HP is enough
14 bales per pack (12 or 10 optional)
No middle row, breathable form all sides

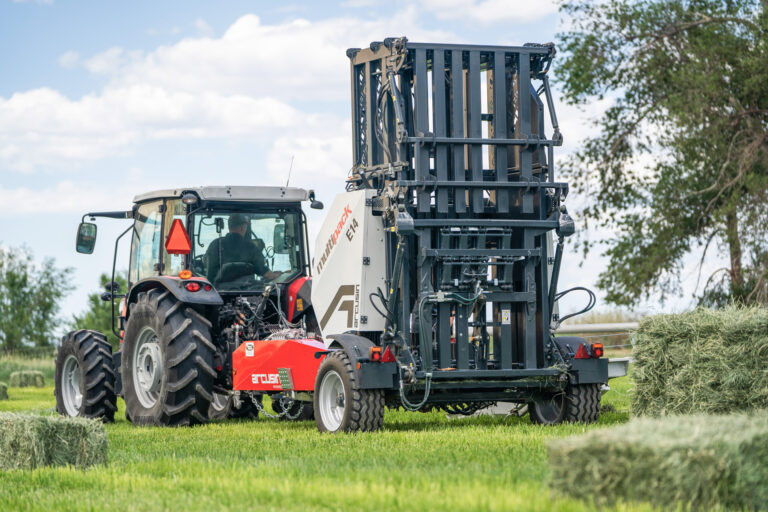

Adjustable compaction chamber
Possibility to reduce total bundle width to suit each product
The first bundler to work with 3-tie bales
Farmers have now a solution to handle these bales
- Increase your loading capacity - fit more bales per load
- Compacted & perfectly aligned bundles - maximum storage efficiency
- Bundles are well-suited for higher moisture - all bales are able to breathe
- Great convenience for end customer - no need to handle bales individually

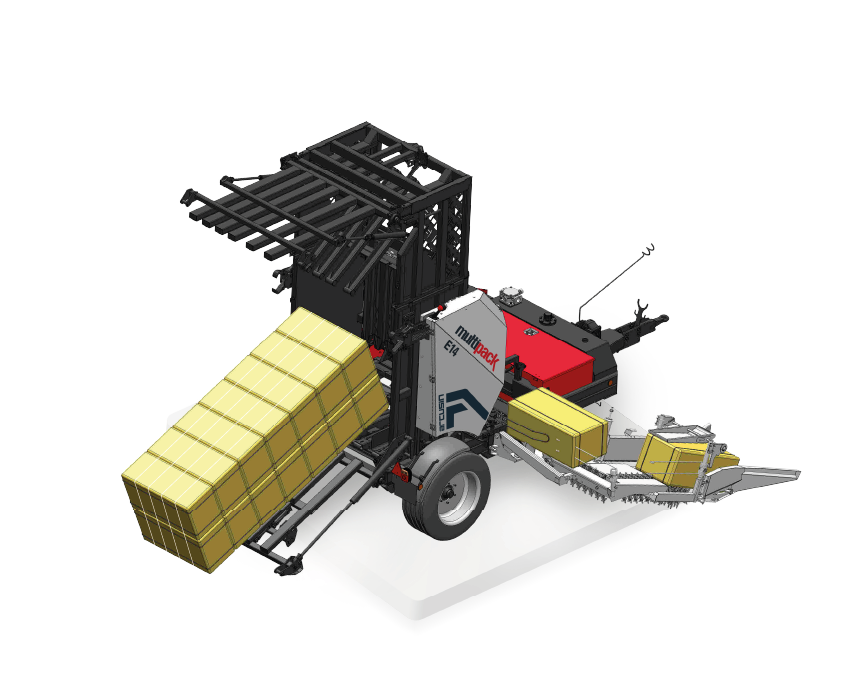

The ARCUSIN bundling system
A completely automatized, non-stop working cycle that will save you hours of time

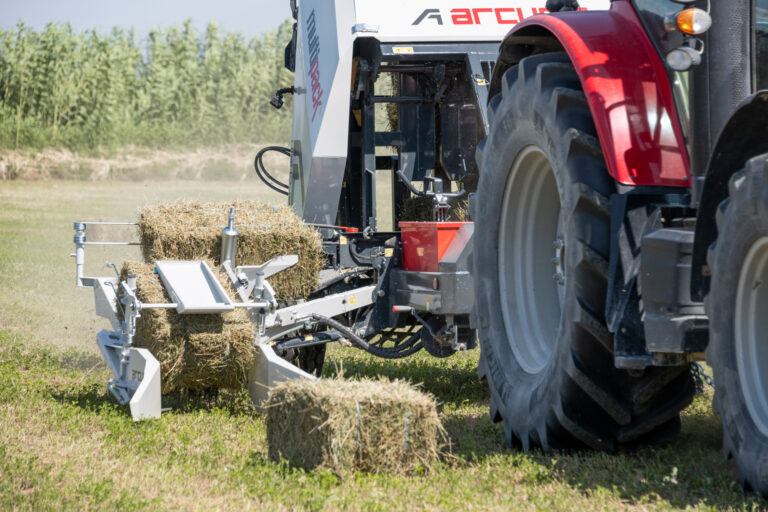

1 Collection

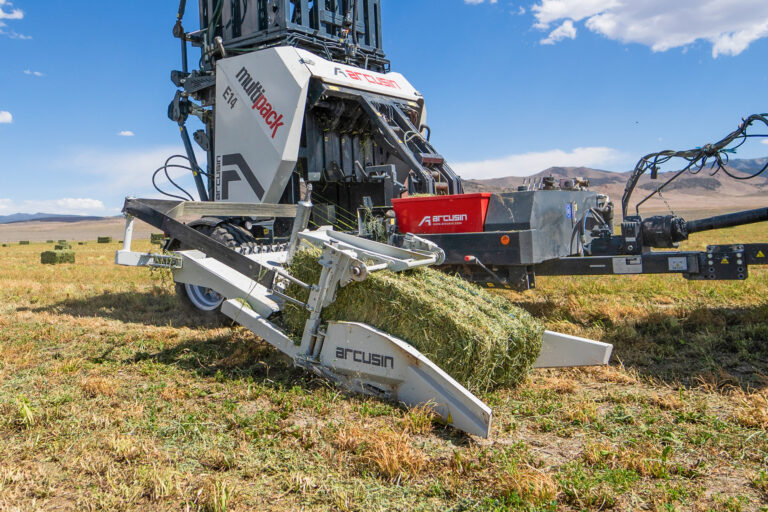

Each bale is smoothly collected with the pick-up arm and turned into the conveyor table
Picks up any size bale 80-120 cm (32-48 in) without adjustments
Can work with 3-tie bales with the optional conversion kit

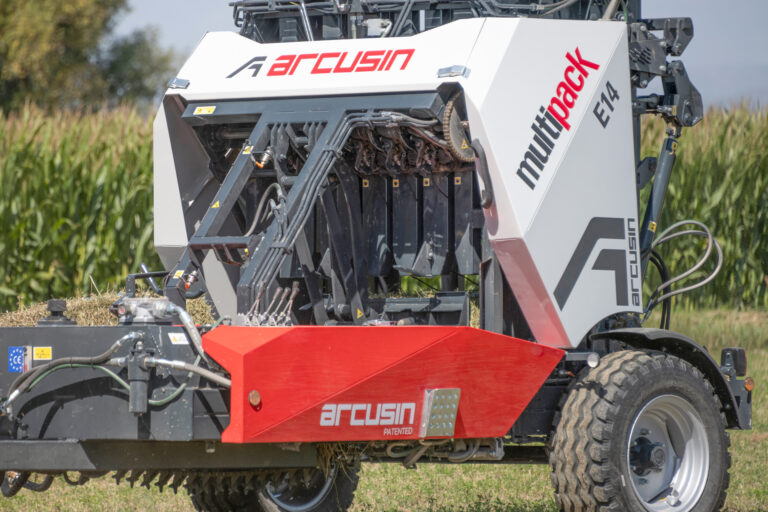

The pusher arm feeds each bale into pressing chamber up to 14 times
Picks up any size bale 80-120 cm (32-48 in) without adjustments
Can work with 3-tie bales with the optional conversion kit
The pusher arm feeds each bale into pressing chamber up to 14 times

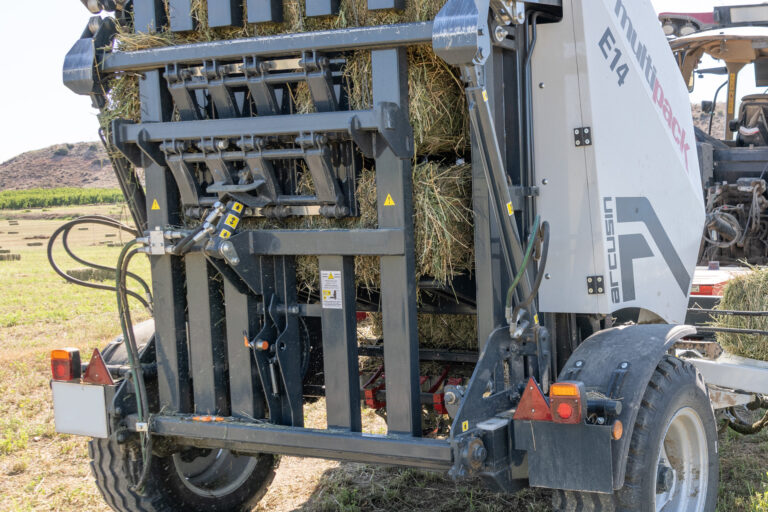

2 Compressing & tying
Once the chamber is full, all bales are vertically compressed and tied together to from a highly compacted bundle
Compaction can be adjusted from 87-100cm in width (34-39 in) with a new clamps system

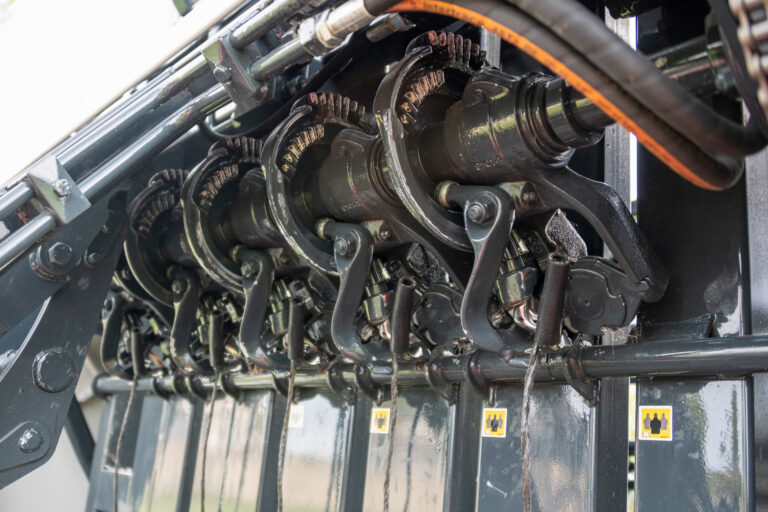

4 or 5 twines are used depending on bale size
Compaction can be adjusted from 87-100cm in width (34-39 in) with a new clamps system
4 or 5 twines are used depending on bale size

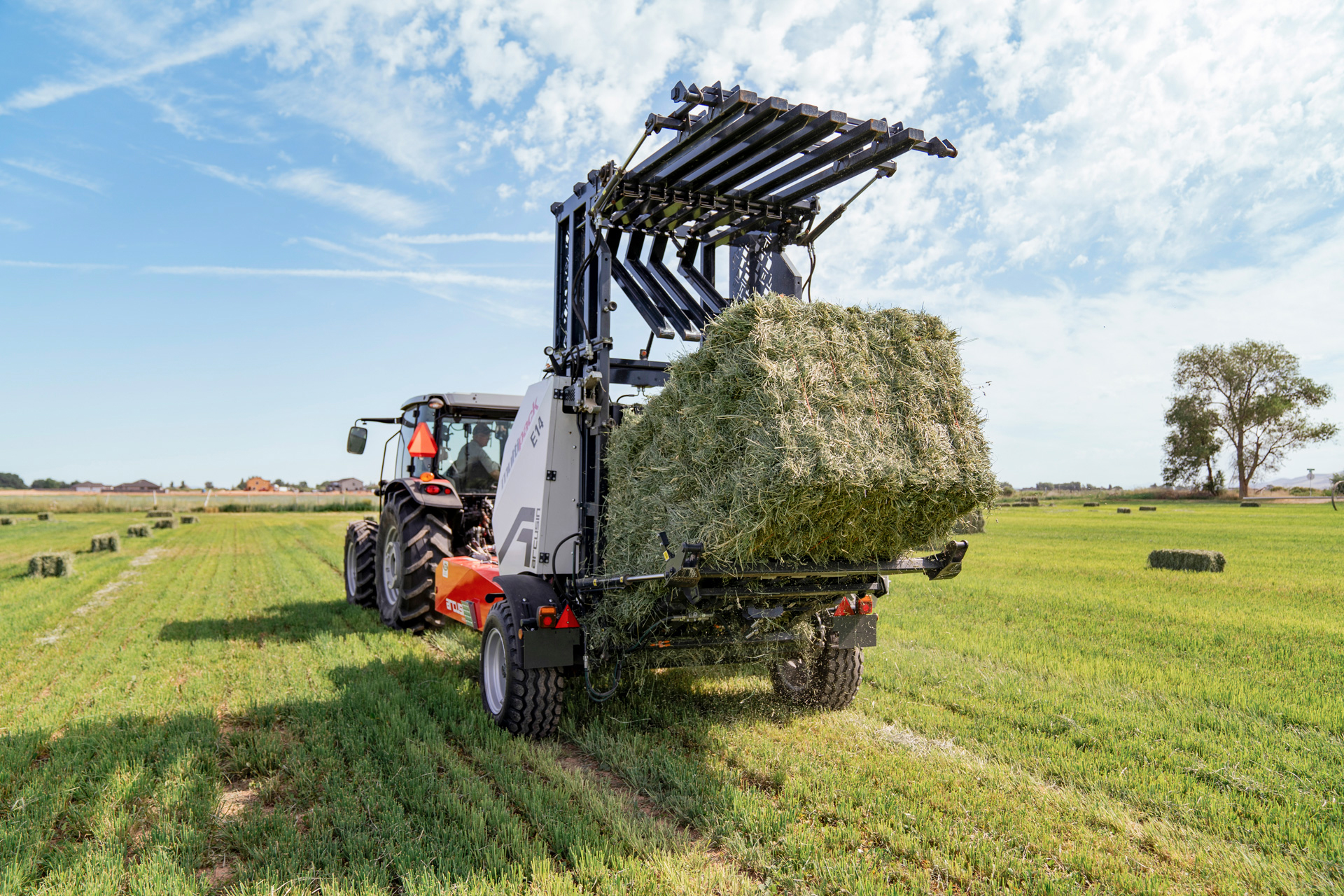

3 Discharge
The bundle slides out through the discharge gate and gently lands on the ground as the machine moved forward and the new pack is being formed
Photo Gallery
Options & Specifications
| Tare: | 2,980 kg |
| On the coupling: | 580 kg |
| On the wheel axle: | 2,400 kg |

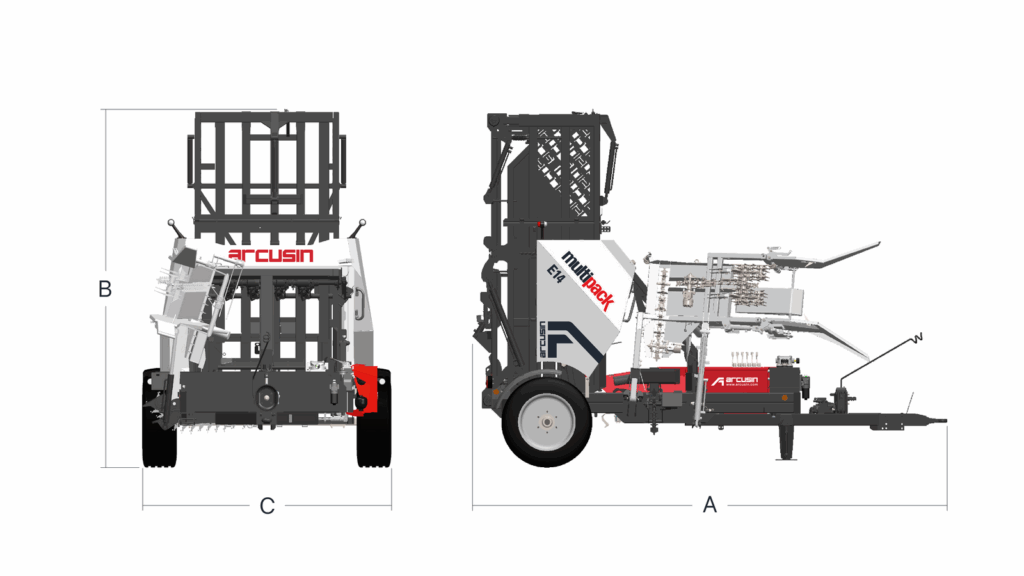

| A: | 4,875 mm |
| B: | 3,510 mm |
| C: | 2,440 mm |
Specs are subject to change without notice
